- Battery Included: No
- High-concerned chemical: None
- Is Smart Device: No
- Measurement Range: 0-1000 g/m³
- Model Number: ZH10-F1
- With LCD Screen Or Not: No
- Gas Type: Multifunctional
- DIY Supplies: Electrical
- Origin: Mainland China
- Certification: CE

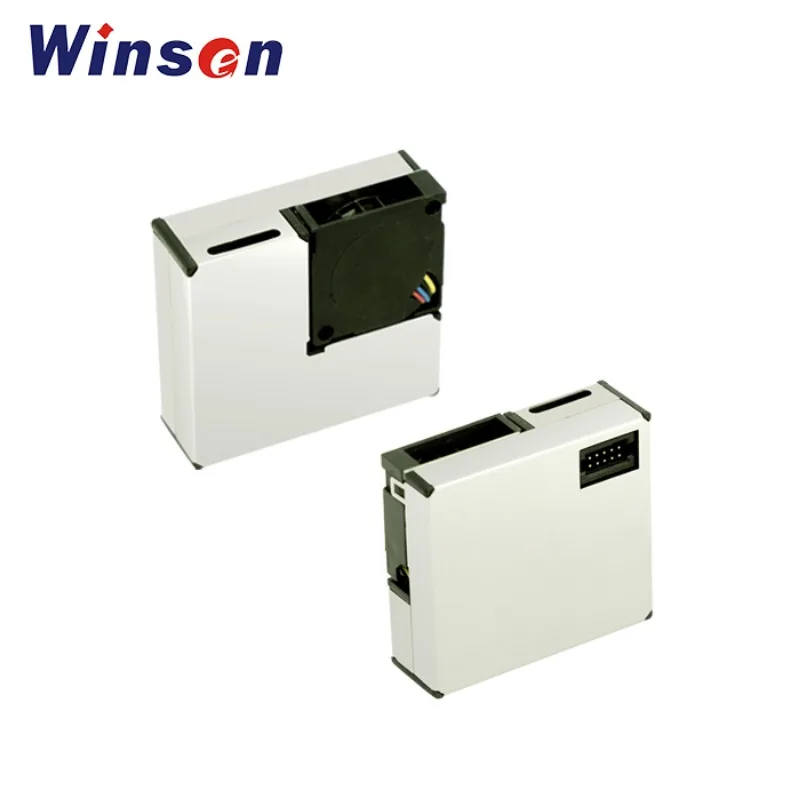

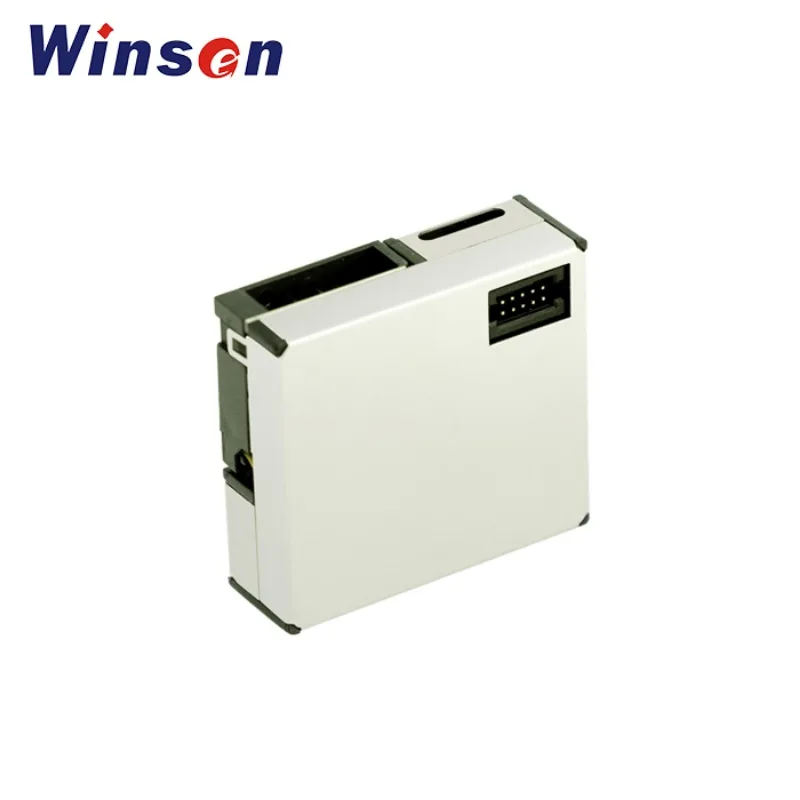

ZH10 Compact Laser Dust Sensor Module is a common type, miniature size sensor module, using laser scattering principle to detect the dust particles in air, with good consistency and stability. Processed by professional algorithms and calibrated detection processes, the sensor has good consistency and stability. The sensor has both serial output and PWM output capabilities, which is easy to use, small in size, and easy to integrate.
Application
Air purifiers;
Ventilation systems;
Portable instrument;
Air quality monitoring equipment;
Air conditioner;
Consumer electronics products.
Features
Good consistency;
Real time response;
Accurate data;
Miniature size;
Good anti-interference ability;
Minus resolution of particle diameter 0.3 µm; Compatible with VOC and temperature and humidity output.
Specifications
PM2.5 | Detectable Particle Diameter | 0.3-10 μm |
Effective Range | 0-1000 μg/m³ | |
Detection Interval | 1s | |
Detection Accuracy | PM1.0/PM2.5 0-100 μg/m³: ±10μg/m³； 101-1000 μg/m³: ±10% reading PM10 0-100 μg/m³: ±25μg/m³； 101-1000 μg/m³: ±25% reading (Test condition: 25±2℃, 50±10%RH, TSI8530, smoke, GBT18801-2015) | |
Preheating Time | <10s | |
Data output | UART_TTL Output(3.3V Level, Default) | |
PWM Output(3.3V Level, Default) | ||
Working Voltage | 5V±0.5V (DC),Ripple≤50mV | |
Working Current | ＜130mA | |
Dormancy Current | ＜20mA | |
Working Humidity | 0～90％RH(No Condensation) | |
Working Temperature | －10～60℃ | |
Storage Temperature | －30～70℃ | |
Dimension | 38×35×12mm(L×W×H) | |
Weight | ＜30g | |
Lifespan | ≥5years | |
