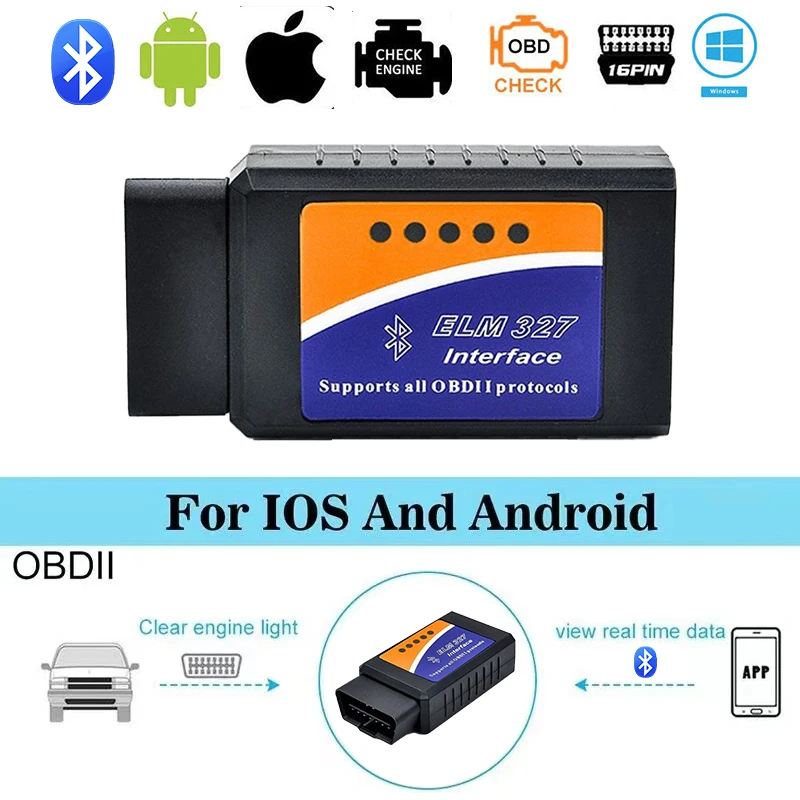

Support System: IOS, Android, Windows

Working Voltage: 9v ~ 16v

Working Current: 35mA

Standby Current: 25mA

Operating temperature: -40℃~ 65℃

Notice:

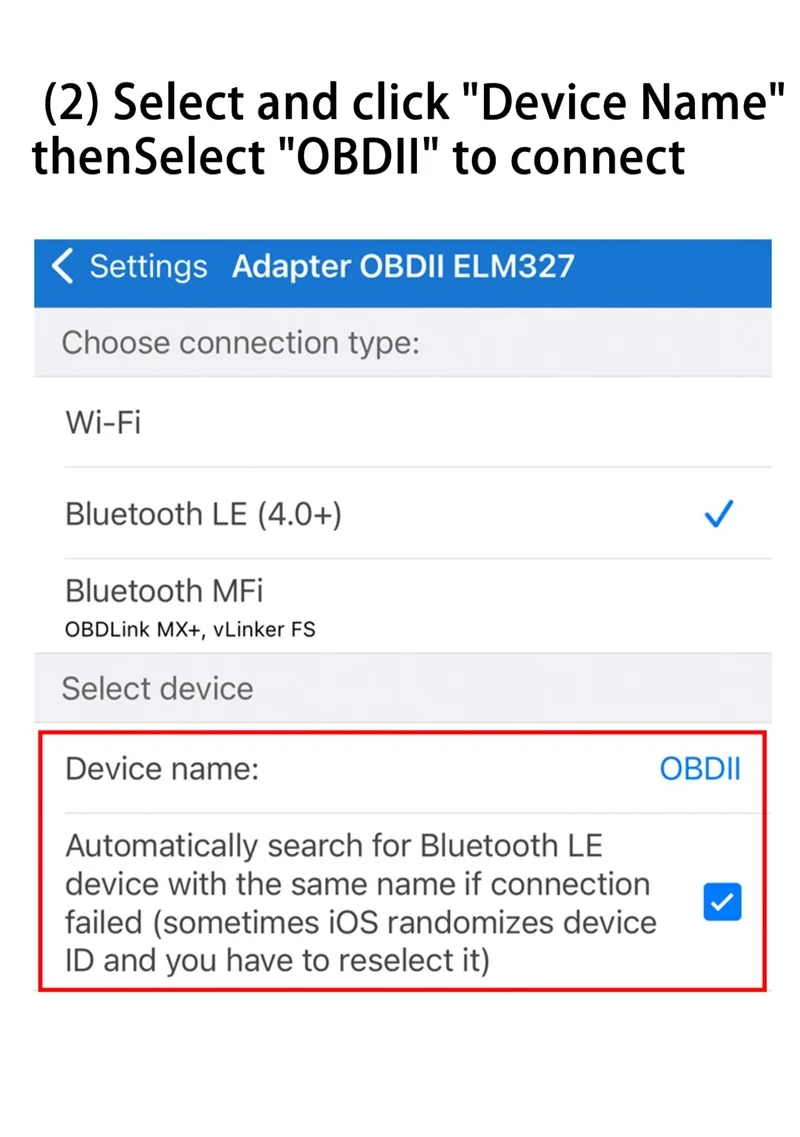

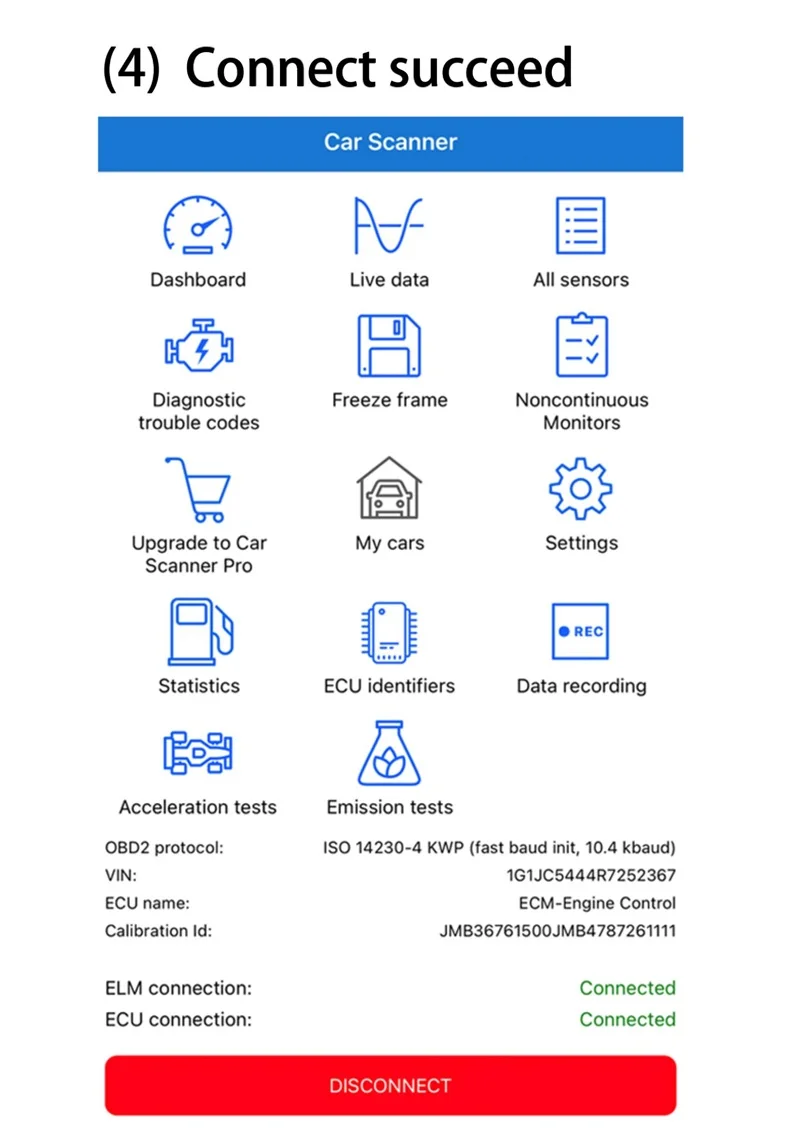

1:Please link Bluetooth through the APP

2:Please read the details carefully to view the usage instructions

Supported protocols:
1.ISO9141-2 (5 baud init, 10.4 kbaud)
2.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3.ISO14230-4 KWP (fast init, 10.4 Kbaud)
4.ISO15765-4 CAN (11bit ID, 500 Kbaud)
5.ISO15765-4 CAN (29bit ID, 500 Kbaud)
6.ISO15765-4 CAN (11bit ID, 250 Kbaud)
7.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL (‘Check Engine’ light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure
